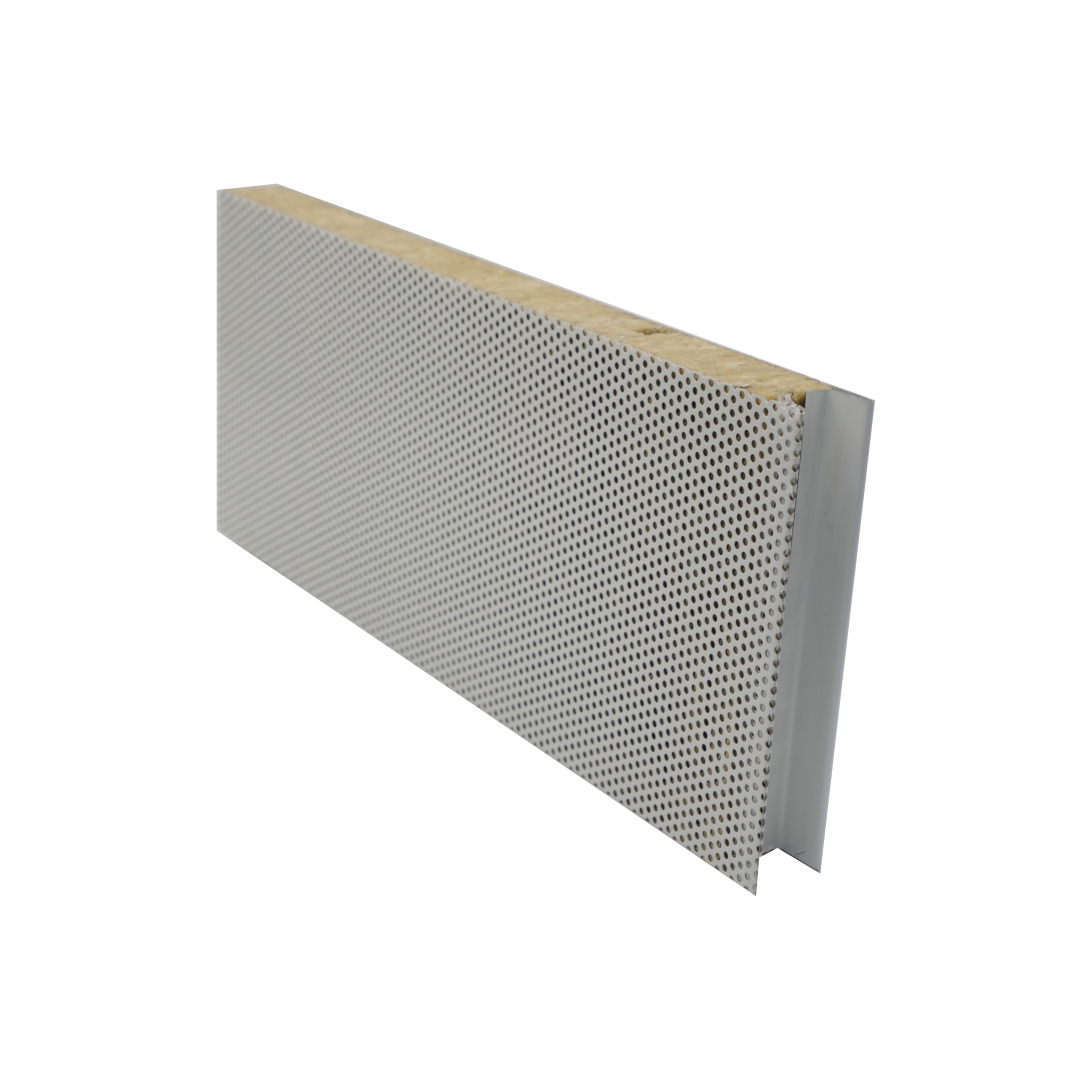

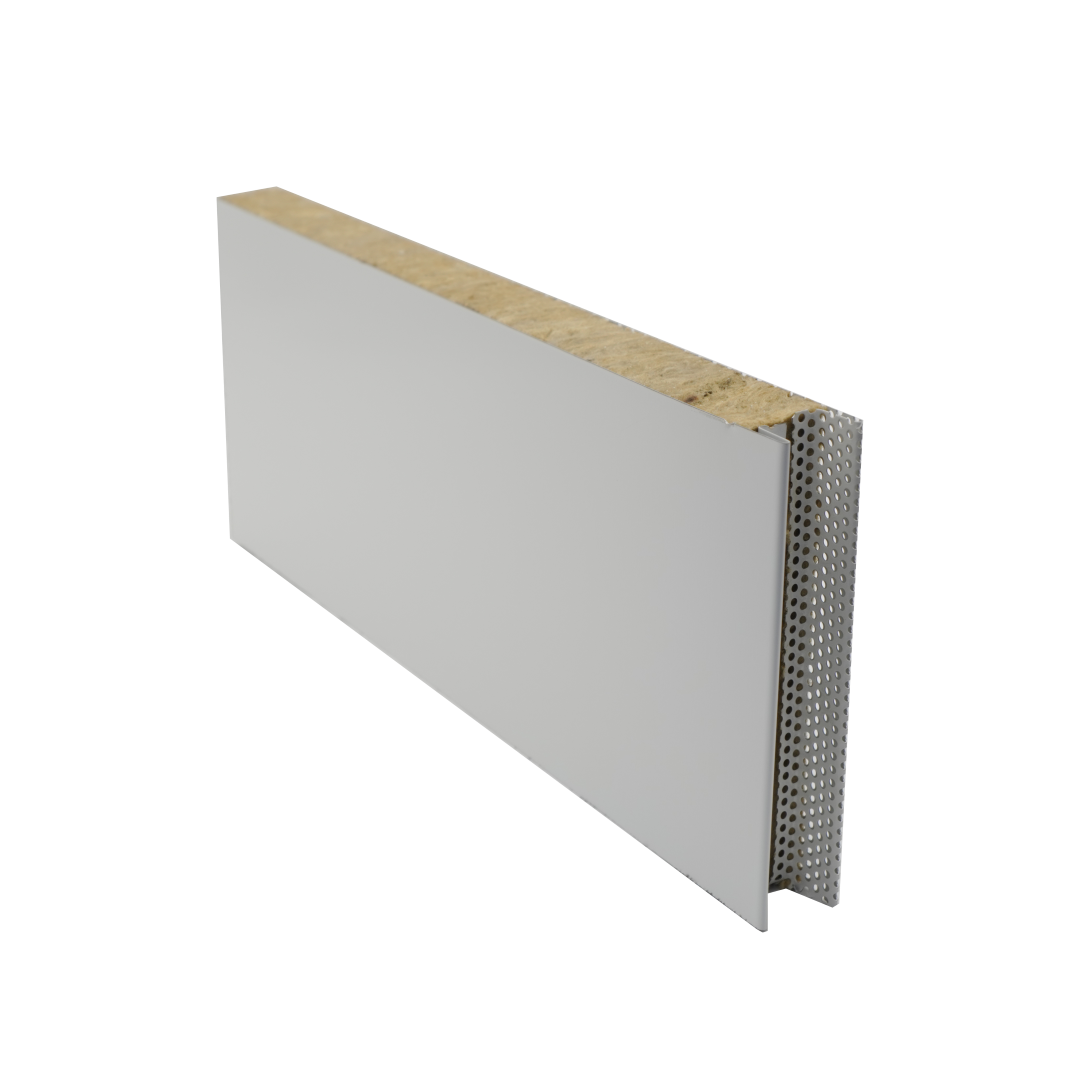

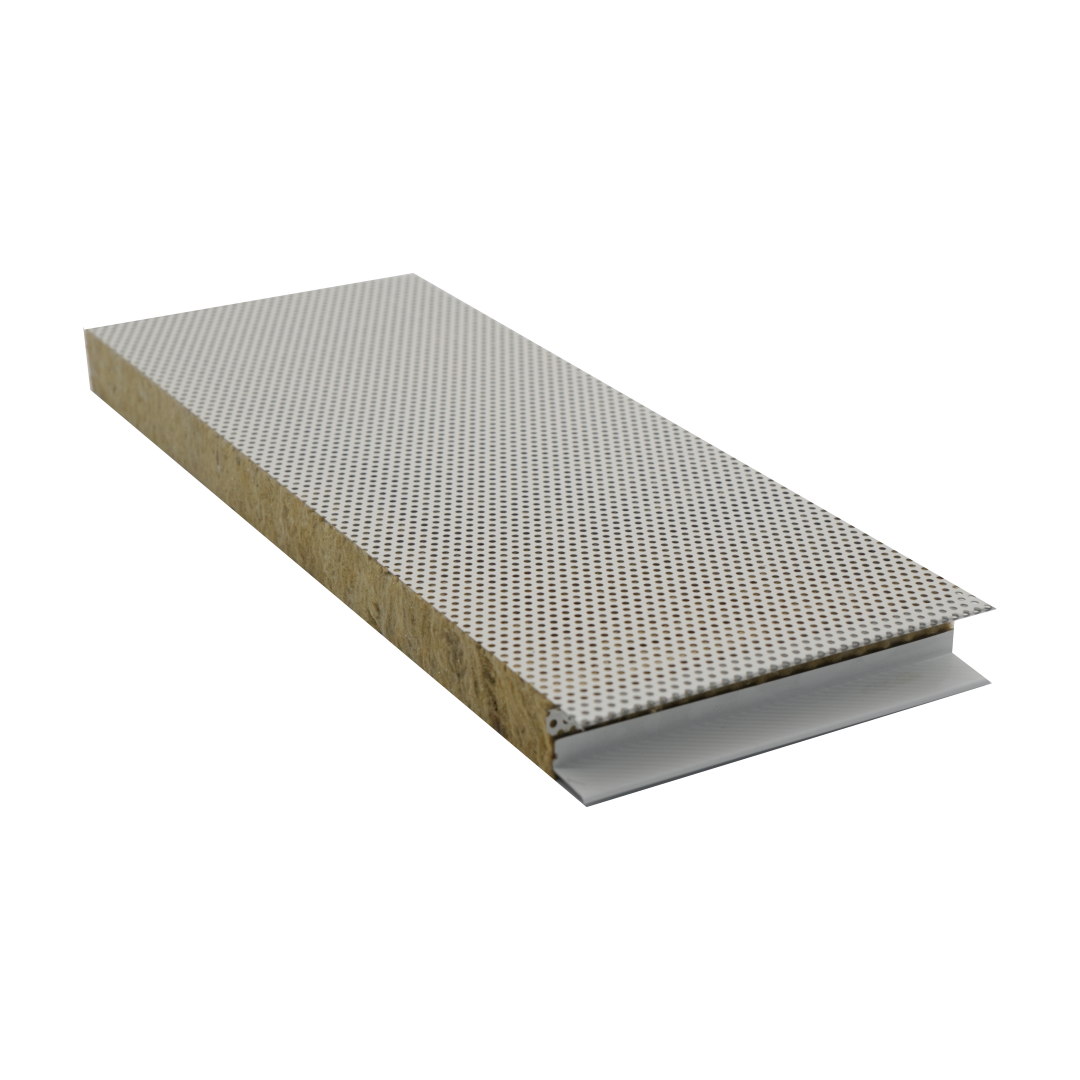

Sound panel
Technical specifications
| Article number | 411000 |
|---|---|
| Slot size | 10 |
| Length | 5000 mm |
| Width | 1100 mm |
| Height | 35 mm |
Download Technical specificationsDescription
The DUCO Sound Panel is a high-quality acoustic construction product specifically designed for applications where sound reduction is essential. Thanks to its intelligent structure and refined finish, this panel is ideal for industrial, commercial, or public spaces where noise reduction is a priority.
Additional Technical Specifications
- Outer Plate: Steel, thickness: 0.65 mm, bonded to core material
- Core Material: Rock wool, Conrock Q5, density: 120 kg/m³
- Inner Plate: Steel, thickness: 0.65 mm, perforation pattern: R5 T5 (round, 5 mm diameter, 5 mm pitch)
- Finish (inner and outer plates): Polyester coating in RAL 9010
Benefits of the Sound panel
- High sound reduction thanks to the combination of rock wool and the perforated inner plate
- Sleek and durable finish with high-quality polyester coating in neutral RAL 9010
- Easy integration with the DUCO aluminium U-profile
- Custom sizes available
The DUCO Sound Panel is the perfect solution for those looking for an acoustically effective and aesthetically finished product.
